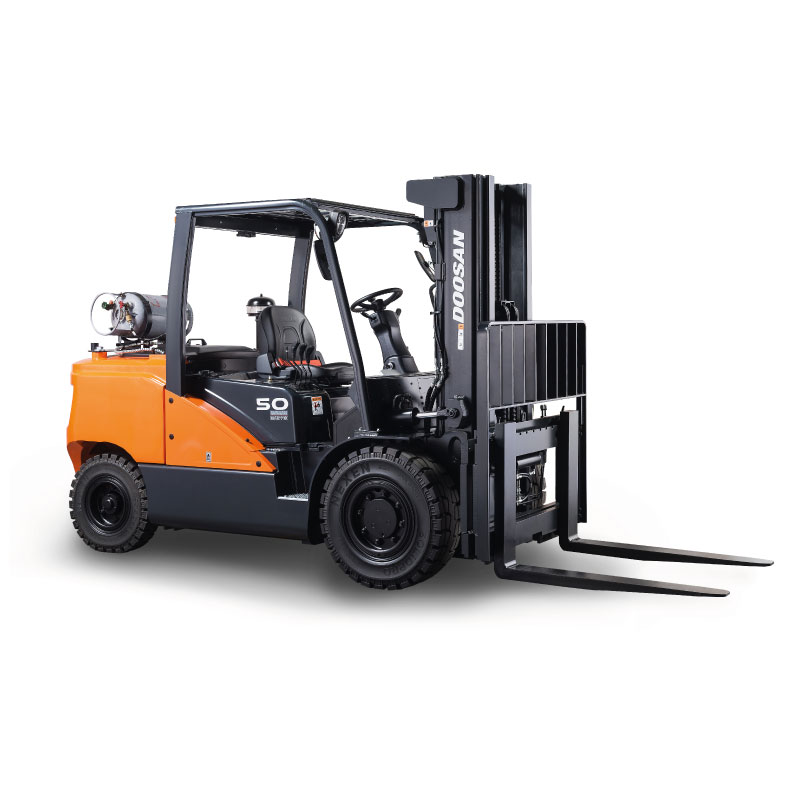

Gas Forklift Trucks - 3.5 t – 5.5 t – Série 7
Gas Forklift Trucks - 3.5 t – 5.5 t – Série 7

3.5 t – 5.5 t – Série 7


Multi Engine Map: Standard/Eco Mode

We provide two engine settings – STD mode and ECO mode. Each customer can choose his own setting to suit different applications.



Easy to maintain

  • Integrated Electrical Components.
  • Wide hood opening range for best accessibility.
  • Tool-less side cover and floor plate.
  • Great location of fuel filter for serviceability.



New Air Cleaner

The increased capacity of the Dual Element Air Filters makes the new 7-series more durable. The integrated MAF sensor (Mass Air Flow) provides exact monitoring for better fuel efficiency.



Oil-Cooled Disc Brakes (ODB)

Oil cooled disc brakes are available as a standard on all D45S-7 Series.

This enclosed Brake system eliminates outsider contamination, significantly extending brake life and decreasing maintenance cost.

Oil cooled disc brakes have service interval 5 times longer than conventional shoe brakes, and virtually maintenance free.



LED lights (optional)

LED lights give greater visibility in darker conditions and last much longer than conventional light bulbs.



Locking type gas spring for hood

Improves safety and convenience with locking function.



Integrated instrument panel

The centralized and easy-to-read instrument panel with LED back lights maximizes operator’s efficiency. Fuel gauge, engine hour meter, engine oil pressure, coolant and transmission temperature, mast interlock, transmission neutral, seat belt, brake oil level indicator keep operator ever aware of all vehicle performance system.

Description (unit)D35S-7D40S-7D40SC-7D45S-7D45SC-7
Rated Load Capacity (kg)35004000400045004500
Load Center (mm)600600500600500
Length to Fork Face (mm)31153165311532803165
Truck Overall Width (mm)13701455137014551455
Height of Overhead Guard (mm)22252230222522302230
Minimum Turning Radius (mm)27822832278228772832
Travel Speed, Loaded (km/h)2019.52019.519.5
Lifting Speed, Loaded (m/s)0.50.50.50.50.5
Wheel Base (mm)20152015201521152015
Engine ModelsPSI 4.3L
Rated Power of Engine (Kw(HP)/rpm)70/2500
Max.Torque (N-m / rpm)284
Displacements (cc)4294

Description (unit)D50C-7D50SC-7D50SC-7D55SC-7
Rated Load Capacity (kg)5000500055005500
Load Center (mm)600500600500
Length to Fork Face (mm)3325328033503325
Truck Overall Width (mm)1455145514551455
Height of Overhead Guard (mm)2230223022302230
Minimum Turning Radius (mm)2925287729752925
Travel Speed, Loaded (km/h)19.519.519.519.5
Lifting Speed, Loaded (m/s)0.490.50.470.49
Wheel Base (mm)2115211521152115
Engine ModelsPSI 4.3L
Rated Power of Engine (Kw(HP)/rpm)70/2500
Max.Torque (N-m / rpm)284
Displacements (cc)4294
Safety
ExtrasStandardOptional
Direction lever function-
Mast lowering interlock✔  -
Operation sensing system✔  -
ELR Type orange seat belt✔  -
Combination lamps (LED)-
Autoshift controller✔  -
Emergency switch✔  -
Back-up buzzer✔  -
Swing out and down LPG cradle-✔

Productivity
ExtrasStandardOptional
Electric controlled TCI (Turbo charged intercooler)✔  -
Pedal location (Accelerator, brake and inching)✔  -
Inching pedal✔  -
Rear grab bar (w/horn)✔  -
Heavy duty cooling✔  -

Comfort
ExtrasStandardOptional
Adjustable steering column✔  -
Integrated instrument panel✔  -
Easy to service:
- Integrated electric components in the junction box (Relays and fuses)
- Toolless side floor mat and plate
- Wide hood open range
✔  -
Cigar and power jack✔  -
Full Cabin with heater/air-conditioner-✔
Rear view camera-✔
Suspension seat-✔
Low noise level-✔
Mono pedals-✔
Steering knob✔  -

Durability
ExtrasStandardOpcional
Electronic control units (ECU) cover-✔
Use waterproof connectors✔   -
Dual element air cleaner✔   -
Full floating driveaxle (w/ODB)✔   -
Pre-cleaner  -

Environment
ExtrasStandardOptional
Dual operation mode (Standard/Eco)✔ -
