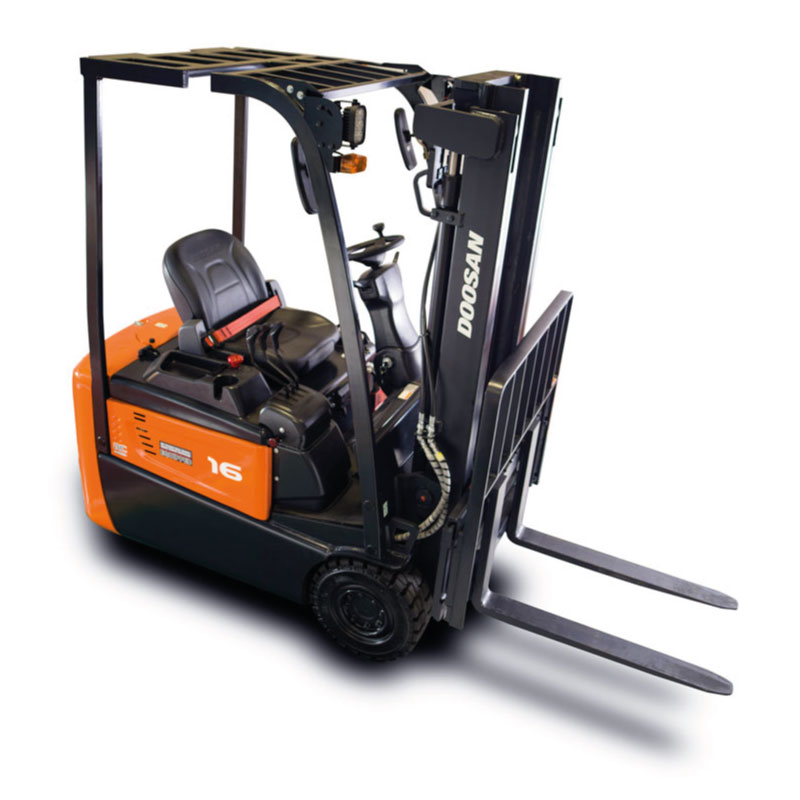

3 Wheel Electric Forklift (1.3 to 1.6 ton)


Range of Doosan electric forklifts with 3 wheel and load capacity of 1,3 to 1,6 tonnes

Reliable, Stable Operation

Stable, Intelligent and Easy Serviceable Curtis Controller

Rugged and Durable Rear Drive Axle

The rear drive axle is controlled by the integrated drive controller and effectively transfers the power and torque of the drive motor to the final drive for smooth and quiet operation.

Side Roll in & Out Battery

The battery changing system reduces the required time to change a battery to an absolute minimum, which shortens the down time of your truck significantly.

Excellent visibility

The precise designed overhead guard profile with angled roof bars provides a clear upward view whilst ensuring ultimate strength for safety. The excellent visibility enables you to work faster and more efficient.

Ergonomic Interior Design

Operators perform best when their working conditions are perfect and the Doosan 7-Series has been designed to make this a reality.

The steering column and full suspension comfort seat, armrest and optional headrest are all fully adjustable to accommodate every operator’s individual preferences. The display and all control functions are ideally situated for maximum comfort. In addition, operators can control the truck’s performance settings during operation, simply by navigating the instrument panel.

Easy to Control

The effortless new Doosan finger-tip control system or mechanical hydraulic levers enables the most effective operation.

The specially designed Convenience Box uses combinations of new and old favorites giving great added value, such as a large cup holder, USB port & 12V cigar jack and clip board holder. These features ensure optimal operator comfort.

Hydraulic Levers: Simple, reliable and familiar. The direction switch is located on the hydraulic lever, meaning a quick change of forward to backward is no problem and completely safe as there is no need to take your hands off the steering wheel or hydraulic levers.

Themergonomic small steering wheel (ø 280 mm) with knob enhances operating comfort and productivity and increases the available legroom in the operator compartment.

Large Panoramic Mirror

Provides the operator a clear view of the rear working area, improving working safety & efficiency.

LED Lights

Brighter and last longer than traditional sealed beams or halogen lights.

Rear Grab Bar with Horn

Enhances safety, comfort and convenience when traveling in reverse.

Moving Front Axle

The wheel base becomes larger when the front axle is extended (by tilting backward). As a result, the forklift has even better stability. When the wheel base is shortened (by tilting forward), it is easy to maneuver the truck in compact spaces.

Emergency switch

The emergency switch can be reached easily when operating the truck.

Worldwide service network

Doosan provides high-quality support, relying on its extensive dealer network. No matter where you are located, highly-skilled professionals are always ready to help you, guaranteeing maximum uptime.

Doosan Genuine Parts

The parts warehouse, located in Belgium, supplies high quality Doosan parts to our European Dealer Network. Therefore, we can guarantee an optimal service for your trucks.

LCD display

The large color LCD display keeps the operator informed about the condition of the truck. Upcoming service intervals will be indicated on the display.

Toolless removable side panel

The side panel can be removed without the need for any tool, not even a screwdriver. In this way, the operator or service technician saves valuable time. Thanks to the wide open hood angle, components are easily accessible to service.

Diagnostics tool

Thanks to the kvaser connector, the performance settings can quickly and easily be finetuned. The EasyViewer software has been developed by Curtis, exclusively for Doosan for maximum control over your truck settings.

Description (unit) B13R-7 B15R-7 B16R-7
Rated Load Capacity (kg) 1250 1500 1600
Load Center (mm) 500 500 500
Wheel Base (mm) 1112 x 1145 x 1195 1171 x 1195 x 1245 1171 x 1195 x 1245
Turning Radius (mm) 1415 1420 1465
Load Moment Center (mm/s) 330 330 330
Travel Speed, Loaded (km/h) 12.0/13.0 12.0/12.5 12.0/12.5
Lifting Speed, Loaded (m/s) 0.3/0.53 0.29/0.53 0.29/0.53
Voltage/Max. Capacity (V/Ah) 24/ 875 24 / 1000 24 / 1000
Safety
Extras Standard Optional
Anti roll back -
Automatic speed control ✔   -
ISO 3691 Mast lowering inter-lock & tilt lock ✔   -
Low battery warning alarm ✔   -
Operating Sensing System (OSS) ✔   -
Emergency stop switch - ✔
LED lights - ✔
Rear grab handle with horn switch - ✔

Productivity
Extras Standard Optional
Excellent visibility through mast ✔   -
Hydraulic cushioned valve in secondary cylinder (FFL & FFT) ✔   -
Smooth and responsive acceleration and plugging ✔   -
Auto tilt leveling - ✔
Battery changing system (SRIO) - ✔
Direction switch on hydraulic control valve - ✔
Mono pedals - ✔

Comfort
Extras Standard Optional
Adjustable tilt steering column & easy grip (Ø280 size) steering wheel ✔   -
Comfortable and adjustable seat ✔   -
Easy to read instrument panel ✔   -
Entry grab bar ✔   -
Large cup holder, USB port & 12V electric jack, clipboard board ✔   -
Premium seats : Grammer seat -
Panoramic mirror -

Durability
Extras Standard Optional
Robust frame structure & strong structure overhead guard   -
Tool-less side cover   -
Wide open battery hood cover   -
IP65 Rated curtis controller   -
Oil-cooled disc brakes (ODB)   -
Rugged, durable and maintenance free rear drive axle   -
Full AC system chassis   -
