GX Diesel Forklift (2 to 3 ton)


Range of Doosan GX Plus diesel forklifts with a load capacity of 2.0 to 3.0 tonnes

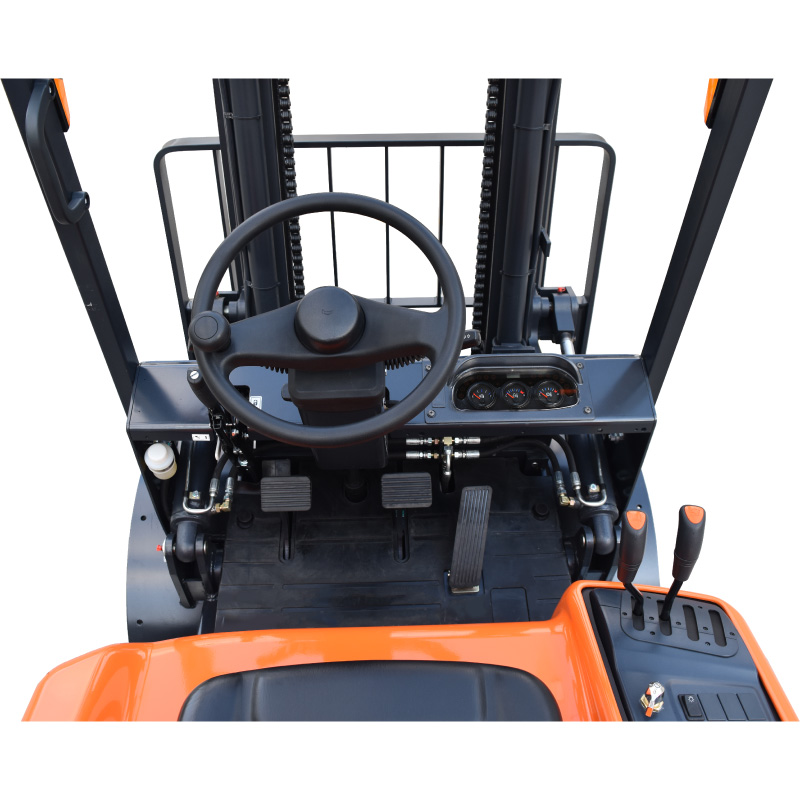

Operator Compartment

The newly designed operator compartment provides optimal comfort and productivity.

  • Spacious Operator Compartment with lots of leg room.
  • Ergonomically located pedals.
  • Low cowl height for better visibility.



Hood Mounted Control Levers

The comfortable arm position to operate the levers reduces the operator’s fatigue significantly.



Adjustable Steering Column

Wide open foot steps and a conveniently positioned grab bar on overhead guard pillar make entry and exit easy.



New Instrument Panel

The easily readable, integrated instrument panel provides a clear overview of the truck’s status.



Rigid Transaxle with Shoe Brakes

The rigid transaxle includes shoe brakes and the 1-speed powershift transmission helps to reduce maintenance and repair time and costs.



Overhead Guard / Cabin (optional)

The ergonomically designed overhead guard and cabin offer great visibility and safety.



Operator Sensing System (OSS)

This systems avoids any unintended forklift movements when the operator is not seated. It reduces the risk on accidents involving operators or nearby people and protects the truck and it’s load.



Dual Element Air Cleaner

The large capacity, dual element air cleaner is designed for extended service intervals, thus lowering your service costs.



Powerful Engine

Powerful and market proven diesel engine: Yanmar 34.3kW – Euro Stage IIIA



Counterweight & Cooling

The newly designed counterweight shows Doosan’s GX Plus Series design identity and allows better air flow to maximize the cooling capacity.

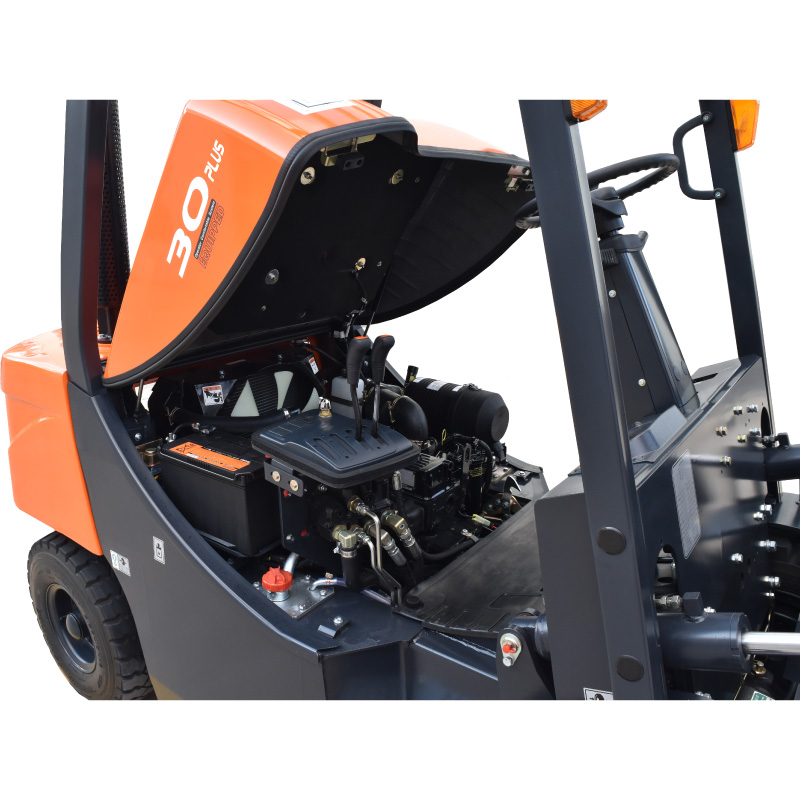

Engine Hood

The strong, rigid steel engine hood ensures optimal durability. The wide open angle provides excellent accessibility to service components.



Easy to Remove Floor Plate & Mat

The easy to remove floor plate offers great accessibility to the powertrain and other components. The thick rubber floor mat reduces noise and vibration for better operator comfort.

Description (unit) D20G PLUS D25G PLUS D30G PLUS
Rated Load Capacity (kg) 2000 2500 3000
Load Center (mm) 500 500 500
Overall Length to Fork Face (mm) 2520 2585 2686
Truck Overall Width (mm) 1165 1228 1228
Height of Overhead Guard (mm) 2143 2160 2160
Minimum Turning Radius (mm) 2250 2300 2430
Travel Speed, Loaded (km/h) 18 18 19
Lifting Speed, Loaded (mm/s) 510 500 490
Wheel Base (mm) 1650 1650 1700
Engine Model Yanmar 4TNE94L
Rated Power of Engine (Kw(HP)/rpm) 34.2/2200
Max.Torque (N-m / rpm) 162/1500
Displacements (cc) 3053
Safety
Extras Standard Optional
Directional Lever -
Mast Interlock – Tilt, Lift and Lower -
Operator Sensing System (OSS) -
Back-up buzzer -
Anti-clinch Type Orange Seat Belt -
Spark Arrestor -
Rear Grab Bar with Horn -
Strobe Light -
Fuel Cap with Key -
Engine Shut Down -



Productivity
Extras Standard Optional
Powerful Diesel Engine -
Pedal Location (Accelerator, Brake and Inching) -
Inching Pedal -
Combination Lamps (halogen) -
LED Combination Lamps -
Quick Disconnect Hose Couplings -



Comfort
Extras Standard Optional
Adjustable Steering Column (tiltable) -
Integrated Instrument Panel -
Steering Knob -
Hood mounted Control Levers -
Full Cabin with Heater -
Defroster Fan -



Durability
Extras Standard Optional
Dual Element Air Cleaner -
Powershift Transaxle (with Shoe Brakes) -
Autoshift Controller -
Heavy Duty Cooling -
Pre-Cleaner -



Serviceability
Extras Standard Optional
Removable Floor Mat and Plate -
Easy to Service · Integrated Electric Components in the Junction Box (Relays and Fuses) · Tool-less Side Floor Mat and Plate · Wide Hood Open Range -



Environment
Extras Standard Optional
Compliant with Emission Regulations (Euro Stage 3A) -
ISO 9001 / ISO 14001 -
